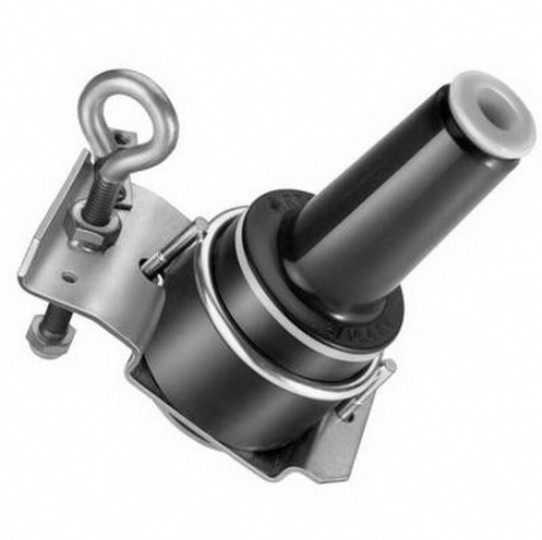

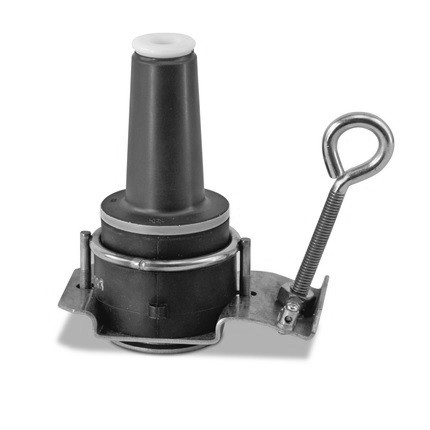

    15kv Insulated Parking Stand

    Part # : ISB215
    Eaton’s Cooper Power series 200 A, 15 kV Insulated Standoff Bushing meets the full requirements of IEEE Std 386™ standard Separable Insulated Connector Systems, and provides a single loadbreak interface made of high quality peroxide cured EPDM rubber. It is used to isolate and sectionalize energized cable in pad-mounted cabinets, underground vaults, and other apparatus.
    Temporary or permanent parking of energized 200 A, 8.3/14.4 kV loadbreak elbow connectors that conform to IEEE Std 386™ standard is simplified with use of the insulated standoff bushing. The insulated standoff bushing is designed to be installed in the parking stand mounted on a transformer or other apparatus. A grounding lug is provided on the standoff bushing bracket for attachment of a drain wire to ensure deadfront construction. When mated with a comparably rated product, the insulated standoff bushing provides a fully-shielded, submersible, separable connector for energized operation.

    Images are representative of product. Product may not be exactly as shown.
