3 Sheave Cable Guide

Part # :

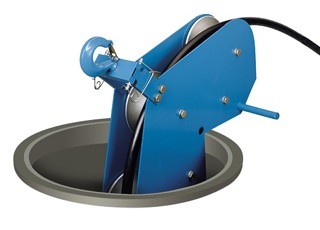

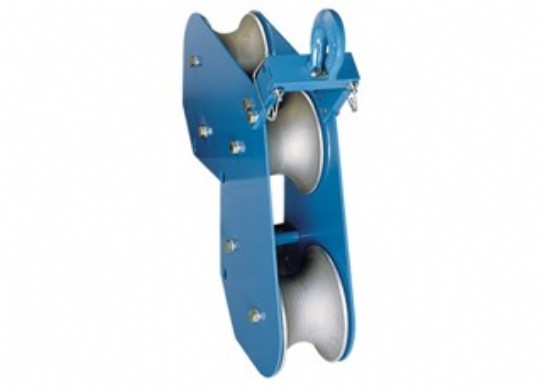

Three cast aluminum or Nylatron® sheaves on  bronze  bearings allow a gradual 90° turn for easy pulling through manhole opening. Pulling radius of 24" (610 mm), the cable guide will sit on manhole edge, suspend in manhole, or fit the jamb skid. 10,000 lbs. (44,480 N) cable tension load capacity. Replacement Sheaves available. See Sheave Specifications and Selection Charts

Support bar sold separately.



Part	Nylatron Part	Size		Weight
Number	Number	(in)	(mm)
08539600	08539610	6	152	105
08539800*	08539810*	8	203	124
* Note:	To fit the jamb skid the 4 bolts holding the hook must be removed
