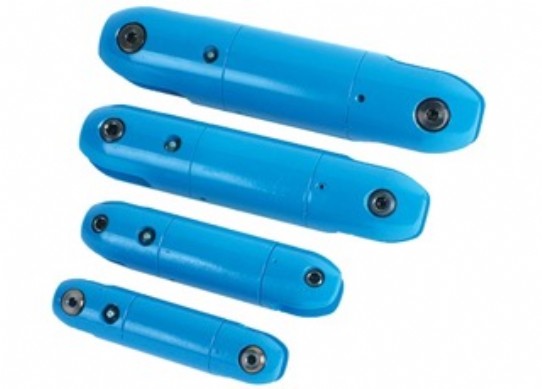

Designed specifically for directional drilling, the Condux 400 D.Drill Swivels prevent boring equipments’ rotational torque from interfering with the product (cable or conduit) being pulled. The D.Drill Swivels are greasable and double sealed to keep contaminants out. There is a 90 day warranty on the directional drill swivels.
|
|
Working |
Load |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Part |
Tension |
|
Compression |
|

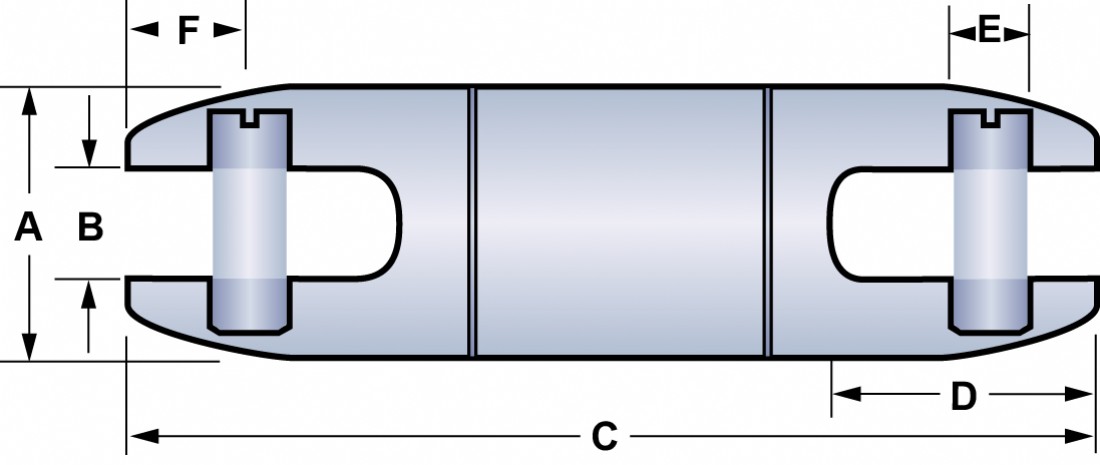

A |
|
B |
|
C |
|
D |
|
E |
|
F |
|
|
Number |
(lbs) |
(N) |
(lbs) |
(N) |
(in) |
(mm) |
(in) |
(mm) |
(in) |
(mm) |
(in) |
(mm) |
(in) |
(mm) |
(in) |
(mm) |
|
08190408 |
1,800 |
6,588 |
595 |
2,177 |
7/8 |
22 |
0.38 |
9 |
4.83 |
122 |
1.03 |
26 |
0.31 |
8 |
0.53 |
13 |
|
08190412 |
4,000 |
14,641 |
1,300 |
4,758 |
11/4 |
32 |
0.56 |
14 |
6.57 |
166 |
1.34 |
34 |
0.37 |
9 |
0.59 |
15 |
|
08190416 |
8,500 |
37,808 |
2,800 |
12,454 |
15/8 |
41 |
0.63 |
16 |
7.22 |
183 |
1.59 |
40 |
0.56 |
14 |
0.78 |
19 |
|
08190420 |
10,000 |
44,480 |
3,300 |
14,678 |
2 |
51 |
0.75 |
19 |
8.29 |
210 |
1.77 |
45 |
0.63 |
16 |
0.71 |
18 |
|
08190425 |
20,000 |
88,960 |
6,600 |
29,357 |
21/2 |
64 |
1.00 |
25 |
11.44 |
290 |
2.79 |
71 |
0.88 |
22 |
1.23 |
31 |
|
08190430 |
30,000 |
133,440 |
10,000 |
44,480 |
3 |
76 |
1.31 |
33 |
13.27 |
337 |
3.56 |
90 |
1.13 |
28 |
1.37 |
34 |
