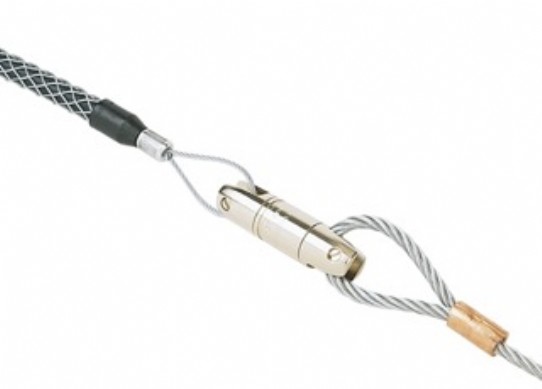

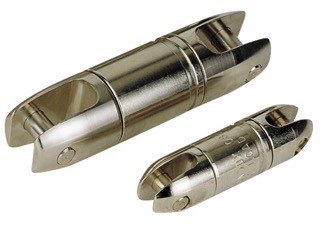

Designed to meet common dimensional specifications, the 821 Champion Swivels are designed for underground and overhead cable pulling applications and can handle all types of utility cable. Precision machined stainless steel. Clevis pin is easily replaceable.
CAUTION: To be used for cable stringing or pulling only.
NOTE: Swivels are not designed to run around bullwheels.
|
|
Working Load |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Part |
*Underground |
|
**Aerial |
|
A |
|
B |
|
C |
|
D |
|
E |
|
F |
|
G |
|
|
Number |
(lbs.) |
(N) |
(lbs.) |
(N) |
(in) |
(mm) |
(in) |
(mm) |
(in) |
(mm) |
(in) |
(mm) |
(in) |
(mm) |
(in) |
(mm) |
(in) |
(mm) |
|
08210007 |
1,800 |
8,006 |
1,080 |
4,804 |
7/8 |
22 |
0.31 |
8 |
3.09 |
78 |
0.84 |
21 |
0.31 |
8 |
0.38 |
10 |
0.305 |
8 |
|
08210012 |
4,000 |
17,792 |
2,400 |
10,675 |
1 1/4 |
32 |
0.59 |
15 |
4.52 |
115 |
1.22 |
31 |
0.38 |
10 |
0.44 |
11 |
0.410 |
10 |
|
08210014 |
7,500 |
33,360 |
4,500 |
20,016 |
1 7/16 |
37 |
0.59 |
15 |
5.13 |
130 |
1.41 |
36 |
0.44 |
11 |
0.59 |
15 |
0.600 |
15 |
|
08210018 |
10,000 |
44,480 |
6,000 |
26,689 |
1 7/8 |
48 |
0.75 |
19 |
7.06 |
179 |
1.88 |
48 |
0.63 |
16 |
0.81 |
21 |
0.755 |
19 |
