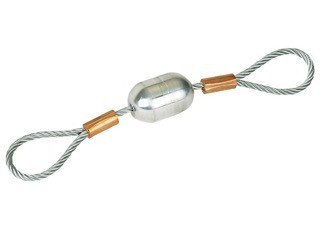

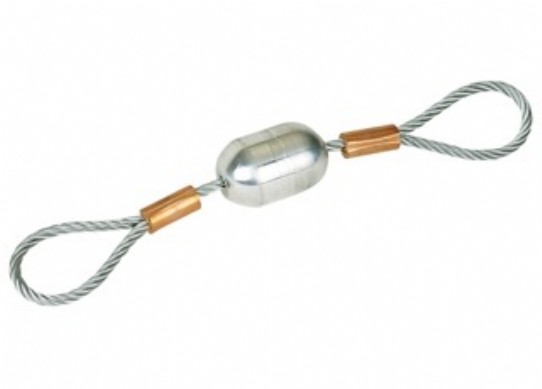

Aluminum Test Mandrels

Part # :

Pull  through  duct  to  prove  joint  integrity  and  test  for out-of-round duct.



Part

Duct Size

Body Length

Max O.D.

Load Capacity

Number

(in)

(mm)

(in)

(mm)

(in)

(mm)

(lbs)

(N)

08059515

11/2

38

1.74

44

1.18

30

2,200

9,786

08059520

2

51

2.40

61

1.62

41

2,200

9,786

08059525

21/2

64

2.98

76

2.00

51

2,200

9,786

08059530

3

76

3.50

89

2.37

61

2,200

9,786

08059535

31/2

89

4.10

104

2.75

70

4,500

20,016

08059540

4

102

4.84

123

3.25

83

4,500

20,016

08059550

5

127

5.98

152

4.00

102

4,500

20,016

08059560

6

152

7.08

180

4.75

121

4,500

20,016

08059580

8

203

9.44

240

6.375

162

4,500

20,016



Condux

Images are representative of product. Product may not be exactly as shown.
