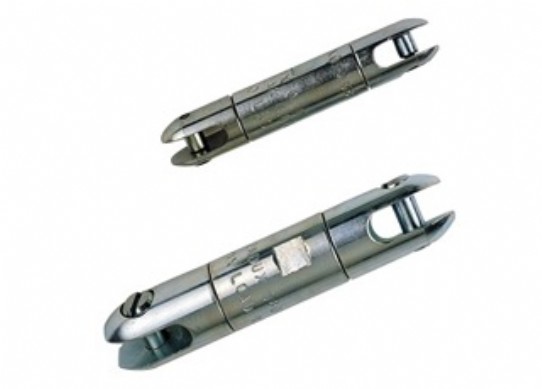

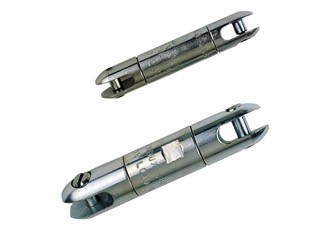

Essential for fiber optic and coaxial cable pulling, these swivels have a break load ranging from 150–1,800 pounds (667–8,006 N) and are designed to separate at ±10% of their rated break load. If the load rating is exceeded, the interior break pin fractures, the swivel separates, and the cable remains undamaged.
|
A |
|
B |
|
C |
|
D |
|
E |
|
F |
|
|
(lbs) |
(N) |
(in) |
(mm) |
(in) |
(mm) |
(in) |
(mm) |
(in) |
(mm) |
(in) |
(mm) |
|
5/8" |
16 |
0.28 |
7 |
3.56 |
90 |
0.79 |
20 |
0.25 |
6 |
0.37 |
9 |
|
7/8" |
22 |
0.38 |
10 |
4.51 |
115 |
1.06 |
27 |
0.31 |
8 |
0.53 |
13 |
|
Part |
Break |
Load |
|
|
|
|
|
|
|
|
|
|
Number |
(lbs) |
(N) |
|
|
|
|
|
|
|
|
|
|
5/8" Swivel (16 mm) |
|
|
|
|
|
|
|
|
|
|
|
|
08017300 |
200 |
890 |
|
|
|
|
|
|
|
|
|
|
08017400 |
250 |
1,112 |
|
|
|
|
|
|
|
|
|
|
08017800 |
300 |
1,334 |
|
|
|
|
|
|
|
|
|
|
08016900 |
450 |
2,002 |
|
|
|
|
|
|
|
|
|
|
08017200 |
600 |
2,669 |
|
|
|
|
|
|
|
|
|
|
08017500 |
650 |
2,891 |
|
|
|
|
|
|
|
|
|
|
08017900 |
750 |
3,336 |
|
|
|
|
|
|
|
|
|
|
7/8" Swivel (22 mm) |
|
|
|
|
|
|
|
|
|
|
|
|
08018100 |
150 |
667 |
|
|
|
|
|
|
|
|
|
|
08018300 |
200 |
890 |
|
|
|
|
|
|
|
|
|
|
08018000 |
250 |
1,112 |
|
|
|
|
|
|
|
|
|
|
08017600 |
300 |
1,334 |
|
|
|
|
|
|
|
|
|
|
08018400 |
350 |
1,557 |
|
|
|
|
|
|
|
|
|
|
08075300 |
400 |
1,779 |
|
|
|
|
|
|
|
|
|
|
08015800 |
450 |
2,002 |
|
|
|
|
|
|
|
|
|
|
08076500 |
500 |
2,224 |
|
|
|
|
|
|
|
|
|
|
08018500 |
550 |
2,446 |
|
|
|
|
|
|
|
|
|
|
08015000 |
600 |
2,669 |
|
|
|
|
|
|
|
|
|
|
08018600 |
650 |
2,891 |
|
|
|
|
|
|
|
|
|
|
08076000 |
700 |
3,114 |
|
|
|
|
|
|
|
|
|
|
08075500 |
750 |
3,336 |
|
|
|
|
|
|
|
|
|
|
08018700 |
800 |
3,558 |
|
|
|
|
|
|
|
|
|
|
08018800 |
850 |
3,781 |
|
|
|
|
|
|
|
|
|
|
08076600 |
900 |
4,003 |
|
|
|
|
|
|
|
|
|
|
08015700 |
1,000 |
4,448 |
|
|
|
|
|
|
|
|
|
|
08018900 |
1,100 |
4,893 |
|
|
|
|
|
|
|
|
|
|
08015200 |
1,200 |
5,338 |
|
|
|
|
|
|
|
|
|
|
08019100 |
1,300 |
5,782 |
|
|
|
|
|
|
|
|
|
|
08074600 |
1,400 |
6,227 |
|
|
|
|
|
|
|
|
|
|
08076900 |
1,500 |
6,672 |
|
|
|
|
|
|
|
|
|
|
08019200 |
1,600 |
7,117 |
|
|
|
|
|
|
|
|
|
|
08019300 |
1,700 |
7,562 |
|
|
|
|
|
|
|
|
|
|
08017700 |
1,800 |
8,006 |
|
|
|||||||
