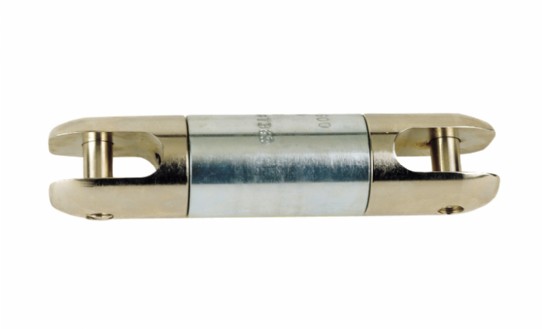

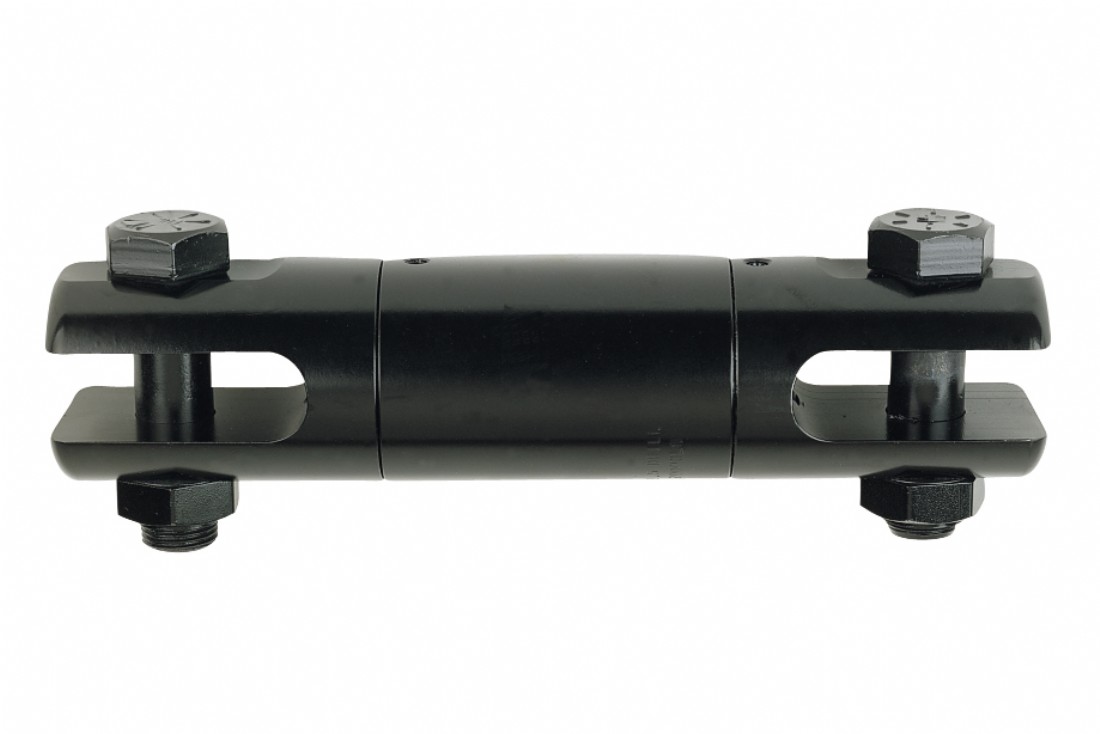

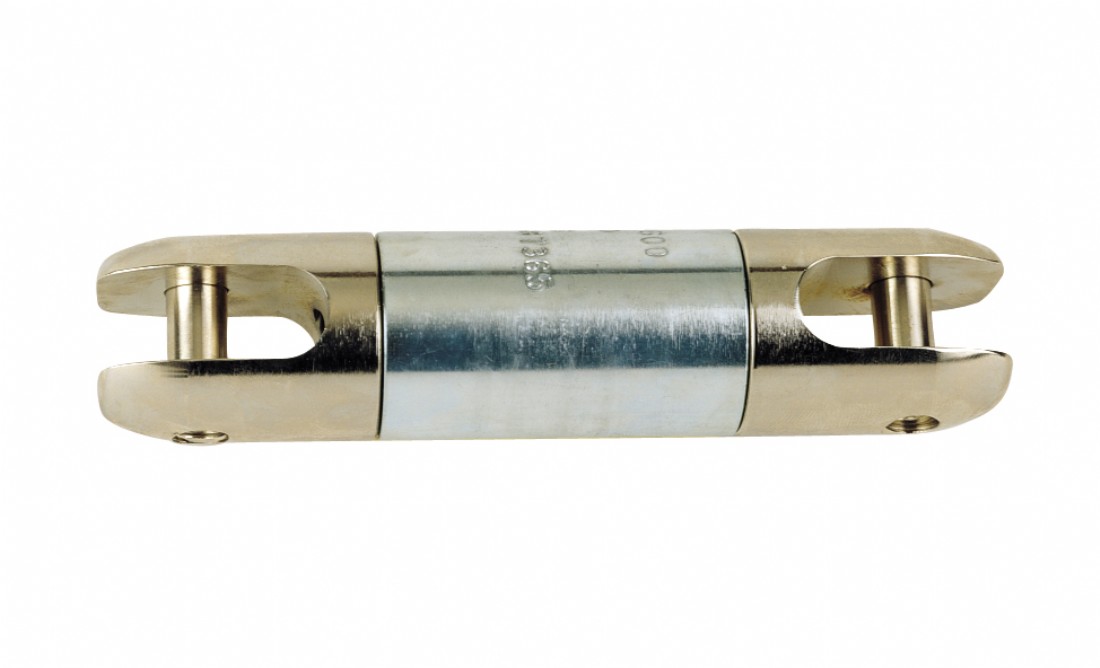

Avoid overstressing cable or conduit being pulled in during directional drilling operations. The Condux Break-Away Swivels for directional drilling are designed exclusively to provide both the swivel and the break link for product pull-back. Eliminate the use of two or more components and shorten the gap between the reamer and pulling eye. No need to use weak link"" pipe sections or wire when using the Condux Break-Away Swivel.
Six different diameter swivels are available to accommodate various pulling needs. Break loads range from 1,200 lbs. (5,338 N) to 25,000 lbs. (111,250 N) and are designed to separate at 10% of their rated break load. Order Replacement Pins as needed.
|
Part Number |
Break Load |
|
|
(lbs) (N) |
|
1 1/4" Swivel (32mm) |
|
|
08021210 |
1,200 5,338 |
|
08021280 |
1,500 6,672 |
|
08021220 |
1,900 8,451 |
|
08021230 |
2,000 8,896 |
|
08021240 |
2,500 11,120 |
|
08021250 |
3,000 13,344 |
|
08021260 |
3,400 15,123 |
|
08021270 |
4,000 17,792 |
|
1 5/8" Swivel (35mm) |
|
|
08021610 |
4,500 20,016 |
|
08021620 |
5,000 22,240 |
|
08021630 |
5,500 24,464 |
|
08021640 |
6,000 26,688 |
|
08021650 |
6,500 28,912 |
|
08021660 |
7,000 31,136 |
|
08021670 |
7,500 33,360 |
|
08021680 |
8,000 35,584 |
|
08021690 |
8,500 37,808 |
|
2" Swivel (51mm) |
|
|
08029200 |
9,000 40,032 |
|
08029400 |
10,000 44,480 |
|
2 1/2" Swivel (64mm) |
|
|
08029600 |
12,000 53,376 |
|
08029700 |
14,000 62,272 |
|
3" Swivel (76mm) |
|
|
08075600 |
18,500 82,288 |
|
08075800 |
22,000 97,856 |
|
08075820 |
25,000 111,250 |
|
4" Swivel (76mm) |
|
|
08075940 |
40,000 178,000 |
