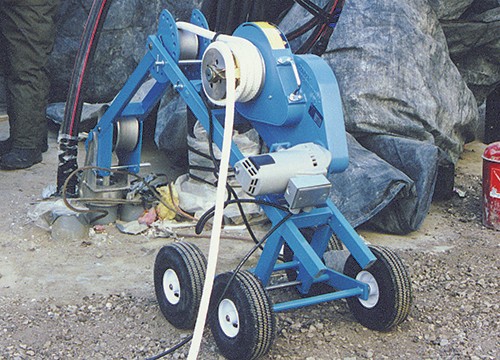

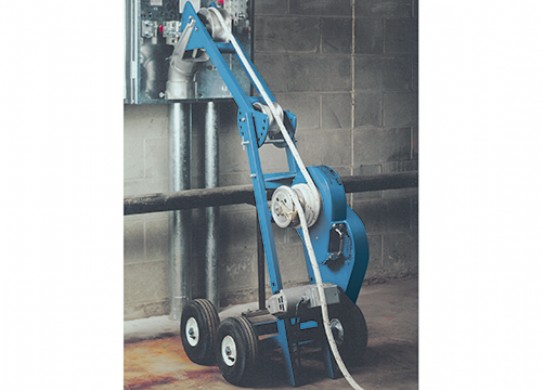

CableGlider STD

Part # : 08610650

Self-contained unit to adapt to a variety of pulling situations. It comes equipped with a two-speed removable power pack, providing up to 6,500 pounds (28,912 N) of pulling force at low speed. Speed changes are no problem with just a turn of a dial.

Design features include a self-tailing capstan for added stability, a pivoting arm and a foot switch for operator convenience and safety. Accepts all diameter rope (self-tailing capstan accepts 5⁄8" (16 mm) to 7⁄8" (22 mm) rope only).



What's in the box:

Foot switch

Retaining Fork

Conduit Adapters - 2" (51 mm), 3" (76 mm)

31⁄2" (89 mm), 4" (102 mm)

Tool box for the accessories



Part Number	Description
08610650	110 Volt Standard Cable Puller*
08610650S	110 Volt Standard Cable Puller Split*
	* International Orders Must Specify Plug Type



Images are representative of product. Product may not be exactly as shown.
