Capstans

Part # :

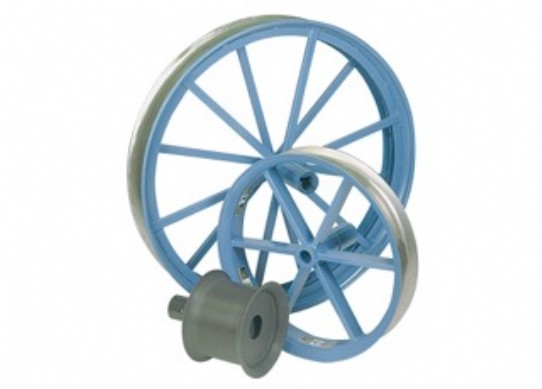

To conform to the many specifications of fiber optic cable available, and to offer more cable pulling capabilities, Condux offers several sizes of capstans that fit the Condux Fiber Optic Cable Puller. These bayonet style capstans are offered in 12" (305 mm), 30" (762 mm), 42" (1,067) and 50" (1,270 mm) diameters for a standard 27⁄16" diameter bayonet style shaft.

*Not to be used for fiber optic cable or steel rope. Intended for pulling innerduct power, telephone or coaxial cables.



Part Number	Diameter		Flat Width		Max. Cable O.D.
	(in)	(mm)	(in)	(mm)	(in)	(mm)
08675213*	12	305	9	229	-	-
08675230	30	762	4	102	0.75	19
08675430	30	762	8	203	1.00	25
08675436	42	1,067	8	203	1.05	27
08675220	50	1,270	8	203	1.25	32



Images are representative of product. Product may not be exactly as shown.
