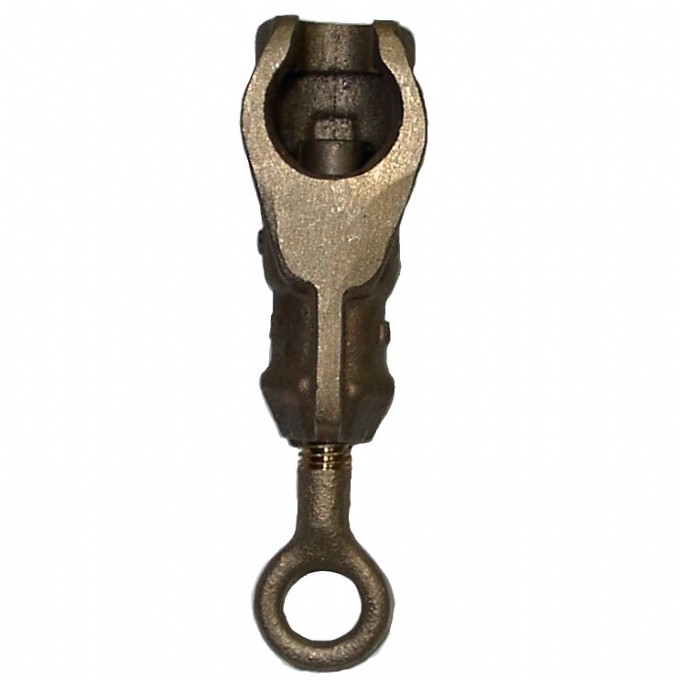

Clamp, 20mm Socket Ball Stud

Part # : HC-10015
Can be installed on all electrical facilities, apparatus, tubes and conductors as well as various equipment (trucks, pulling equipment, etc.)
This universal clamp can also be used on a jumper cable
Installation on conductor, round bus bar and grounding ball stud of 25mm
Stress-relief to reduce cable damage and serve as a shock damper if fault occurs, which
protects cable strands.
Locations on each side of the clamp for 20mm or 25mm grounding ball studs installation, which serve as support studs for either a grounding cluster or cascade assembly.
Fitted to receive a 5/8-11UNC threaded stud ferrule.
Lubrication chamber for upkeep of threads
Installation eye for installing clamp with shotgun stick.
Double internal threads for fast installation and removal.

Material:
Aluminum Clamp and Keeper
Bronze or Aluminum Eye Screw




MacLean Power Systems

Images are representative of product. Product may not be exactly as shown.
