Complete Pulling Packages For CableGlider HD

Part # :

The Condux CableGlider HD is specially designed to provide maximum pulling power for longer runs in a completely self-contained unit. It offers fast set-up, portability and is easily adaptable for a variety of pulling situations.

The removable power pack delivers up to 12,000 pounds (53,375 N) of pulling force at low speed—over 80% more than our STD puller. The two-speed motor pulls up to 30 feet per minute at high speed and up to 15 feet per minute at low speed.

The CableGlider HD comes with a heavy-duty frame and extra pivoting arm. The front frame height can easily be adjusted with pins.

Power Requirements:

PEAK POWER4.7 HP (3.50 kW)

GENERATOR8000 Watt Recommended*

*NOTE: Use of less than the recommended wattage generator may effect the

pulling specifications.



Part No.	Description
08674689	CableGlider HD (Package 1)
08674689S	CableGlider HD (Package 1) Split

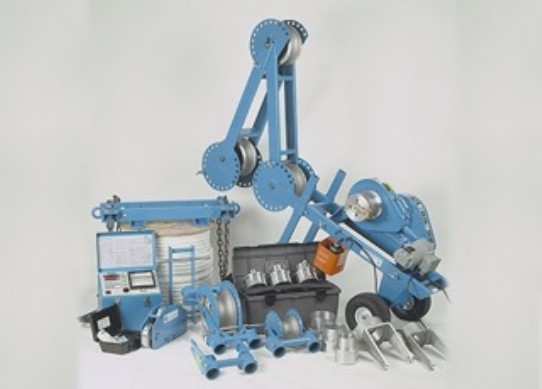

110 Volt Puller with accessories (above)
HD Extension Frame (pg. 90)
600 ft (183 m) of 5/8" (16 mm) double-braided rope (pg. 43)
Floor/Conduit/Pole Mount Frame (pg. 89)
5" (127 mm) & 6" (152 mm) adapters w/retaining fork (pg. 91)
Running Line Tensiometer w/ Data Recorder (pg. 93)
08674688	CableGlider HD (Package 2)
08674688S	CableGlider HD (Package 2) Split
All Items in Package 1 with :
Amp-type Tensiometer (pg. 91) (Replaces RLT)



Images are representative of product. Product may not be exactly as shown.
