Dua-Pull® Pulling Grips are the highest strength pulling grips manufactured for overhead transmission line stringing applications. They are most commonly used for attaching pulling lines to conductors, conductors to running boards and double socking for conductor-to-conductor connections. They accommodate ACSR, ACAR, all aluminum and copper conductors, ground wires messenger strands and synthetic ropes not provided by any other grip.
|
|
|
|
Conductor Diameter |
|
Rope Diameter |
|
Approximate Breaking |
|
|
|
|
|
|
|
|
Part |
|
|
Range |
|
Range* |
|
Strength |
|

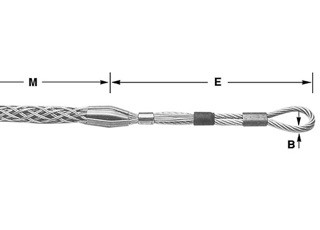

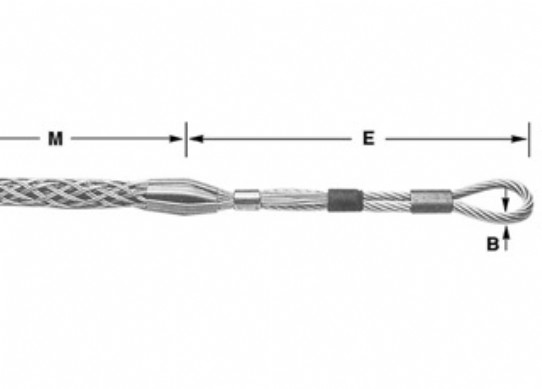

E |
|
M |
|
B |
|
|
Number |
Description |
Color |
(in) |
(mm) |
(in) |
(mm) |
(lbs) |
(N) |
(in) |
(mm) |
(in) |
(mm) |
(in) |
(mm) |
|
08641710 |
033-27-1037 |
Black |
.19 - .37 |
5 - 9 |
.25 - .65 |
6 - 17 |
6,500 |
28,912 |
10 |
254 |
24 |
610 |
0.218 |
6 |
|
08641716 |
033-27-1038 |
Green |
.38 - .62 |
10 - 16 |
.50 - .90 |
13 - 23 |
14,000 |
62,272 |
12 |
305 |
36 |
914 |
0.375 |
10 |
|
08641728 |
033-27-1039 |
Red |
.63 - .87 |
16 - 22 |
.75 - 1.10 |
19 - 28 |
20,000 |
88,960 |
13 |
330 |
48 |
1,219 |
0.437 |
11 |
|
08641734 |
033-27-1040 |
Blue |
.88 - 1.12 |
22 - 28 |
1.00 - 1.50 |
25 - 38 |
30,600 |
136,109 |
15 |
381 |
60 |
1,524 |
0.500 |
13 |
|
08641740 |
033-27-1041 |
Yellow |
1.13 - 1.37 |
29 - 35 |
1.25 - 1.70 |
32 - 43 |
46,800 |
208,166 |
18 |
457 |
76 |
1,930 |
0.625 |
16 |
|
08641746 |
033-27-1042 |
Aluminum |
1.38 - 1.90 |
35 - 48 |
1.50 - 2.10 |
38 - 53 |
66,500 |
295,792 |
24 |
610 |
89 |
2,261 |
0.750 |
19 |
