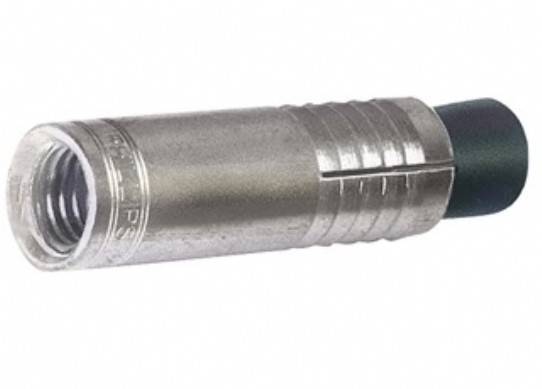

For use in pre-drilled holes. Plug expands as anchor is driven into it making a solid hold in concrete.
*NOTE: Allowable working loads are in 4000 psi concrete.
Allowable shear loads are based on the use of SAE Grade 5 capscrews.
|
|
|
Allowable Working Loads* |
|
|
|
|
Part |
|
Tension |
|
Shear |
|
|
Number |
Description |
(lbs) |
(N) |
(lbs) |
(N) |
|
08409900 |
"3/4""- 10 UNC Threads" |
4,010 |
17,836 |
4,400 |
19,571 |
|
08409901 |
"5/8""- 11 UNC Threads" |
2,420 |
10,764 |
3,050 |
13,566 |
|
08409902 |
"1/2""- 13 UNC Threads" |
1,690 |
7,517 |
1,560 |
6,939 |
|
* NOTE Allowable Working Loads are in 4000 psi concrete |
|
|
|
|
|
|
Allowable shear loads are based on the use of SAE grade 5 capscrews |
|
|
|
|
|
