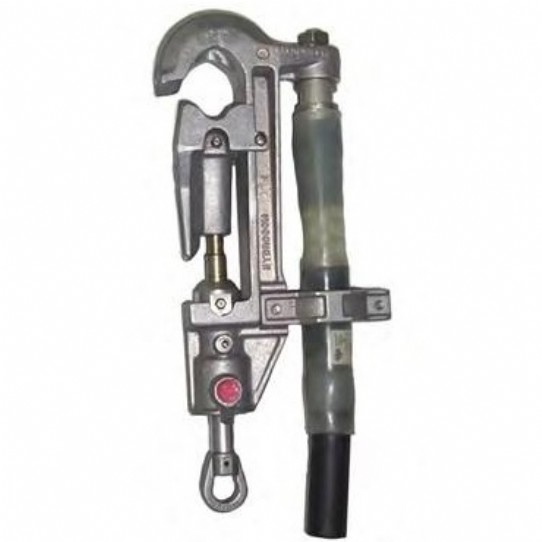

Universal Clamp, (5H) 30mm Transmission Universal Utility Supplies High Voltage Lineman Supplier Tooling Cable Installation Safety Equipment Canadian Utilities Telecommunications Power Generation Utility Contractor Suppliers Ontario Quebec Jubb

Can be installed on all electrical facilities, apparatus, tubes, and conductors

as well as various equipment (trucks, pulling equipment, etc.)

• Installation on conductor, round bus bar and grounding ball stud of 30 mm

• Tested to 5H (HC-10041) and 7H (HC-10041-A)

• Tested and certified only with MPS components

• Stress relief to reduce cable damage and serve as a shock damper

if fault occurs, which protects cable strands

• Fitted to receive a 5/8-11 or 3/4-10 UNC threaded stud ferrule

• Lubrication chamber for upkeep of threads

• Double internal threads for fast installation and removal

• No exposed threads for minimal maintenance

Materials

Body and Eye Screw: Aluminum A356T6

Images are representative of product. Product may not be exactly as shown.
