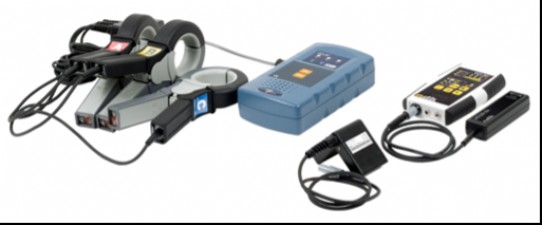

VCi-3 Voice Cable Identification System

Part # : VCi-3

The VCi-3™ system is designed for cable and phase identification, mainly for instal¬lation or maintenance purposes on three-phase electrical networks during power shutdowns.

The transmitter module injects a low current on the cable conductors by direct con¬tact or magnetic clamps methods. A voice message is recorded by the user and will be transmitted along with digital signals. Groundings stay connected at both ends of the three-phase circuit during the test. The detector module is used at the other end of the cable system.

Highlights:

Unique balanced injection system that eliminates signal bleeding on other wires
Three different frequencies to identify each phase
Easy to install and operate
Extended range: up to 10 km (6 miles) of working distance
Tone transmission for more than 8 hours
Lightweight and compact
Optional magnetic sensing transducer
Phase detection by transmitter tone presence or absence
Digital filtering of network harmonics
Unique dual grounded method

Specs:

VCi-3E transmitter (VCi-3E)
VCI-3D detector (VCi-3D)
Magnetic sensor (VCi-3DSX)
VCI-3 cable set (VCI3E)
Power supply (PS-044) qty of 2
User manual (MU027) (download PDF only)
Calibration certificate
Base kit weight: 5.4kg/12lbs

Transportation case: Choose either standard case¹ or large case²

Medium case¹ (BOX-075)

Transportation case 51x38x23cm / 20x15x9in

Large case² (BOX-110)

Transportation case large 56x43x20cm / 22x17x8in

Required for larger kits that contains multiple accessories

Optional Accessories:

VCi-3-2.125 clamps	Magnetic transducers clamps, opening: 2.125in/54mm
VCi-3DCOMPASS	Test leads for cut cables phasing
VCi-3DSX-SUB	Magnetic sensor, submersible, 152cm/5ft long
VCi-3DSV	V shape magnetic sensor for 3 phase PILC cables
VCi-3D-Clamp-BC	Clamp-on type sensor for VCI-3 Detector
VCi-3D-Filter-BC	Inline filter for VCI-3D sensors
VCi-3 Test bench	3 Phase circuit 1-5km simulator test or training bench, with 2 cluster type grounds, 1 earth cable
DRM-4014	Nylon mesh protective bag

Replacement parts:

BOX-075

Transportation case (Medium) 46 x 35 x 18 cm / 18 x 14 x 7 in

BOX-110

Transportation case (Large) 56 x 43 x 20 cm / 22 x 17 x 8 in

PS-044

Power supply 15W 1.25A

PS-017

Power supply 36W 3.0A

VCi-3DSX

Magnetic sensor for VCI-3 system

VCi-BAT

Battery replacement set for VCI-3E transmitter

VCi-3D

Replacement VCI-3D detector

VCi-3E

Replacement VCi-3E transmitter

VCI3E-01

Replacement direct injection cable set

VCi-3-3.125 clamps

Magnetic transducers clamps, opening: 3.125in/79mm
