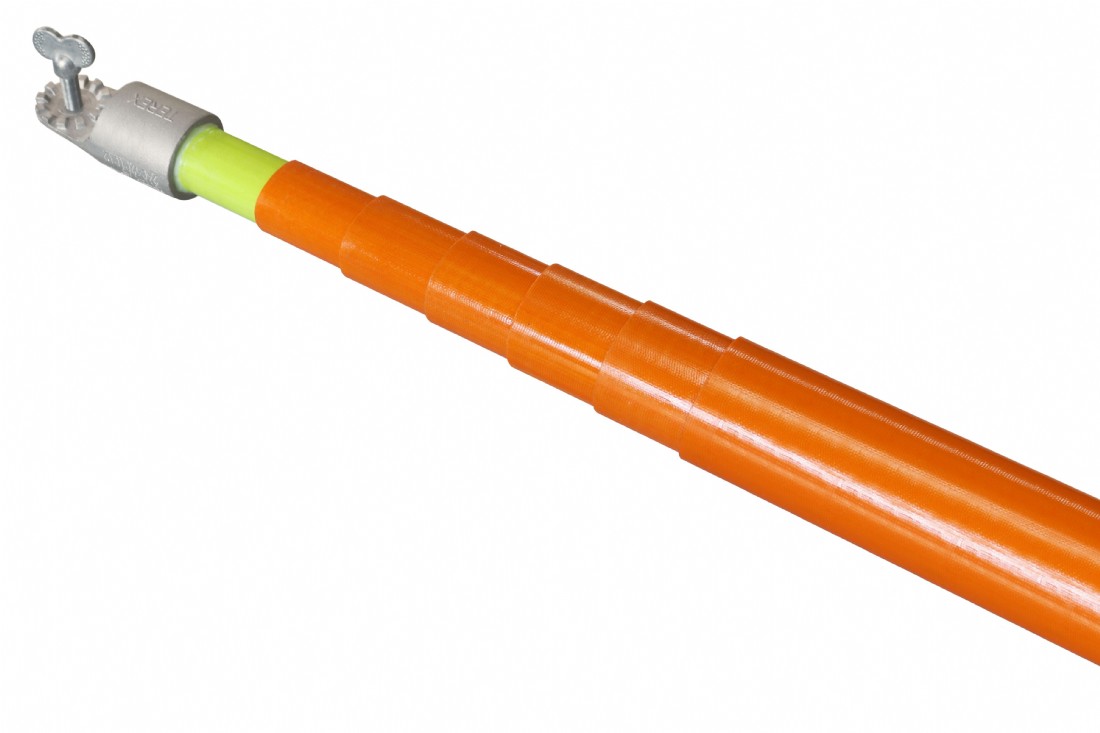

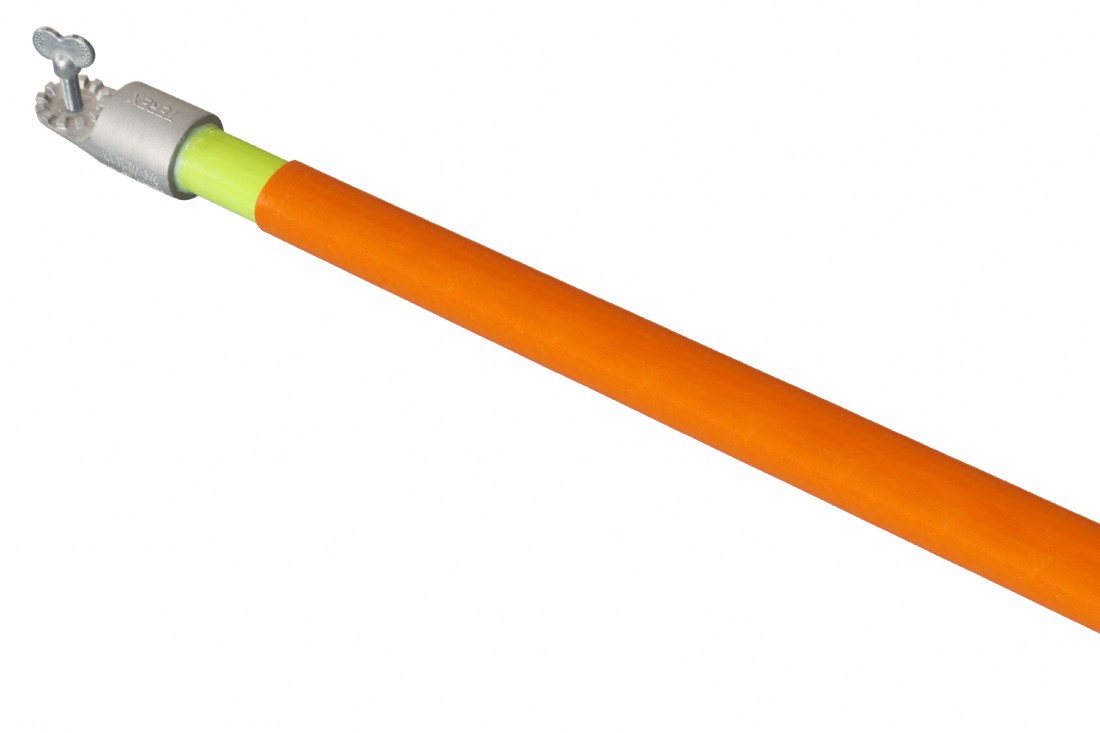

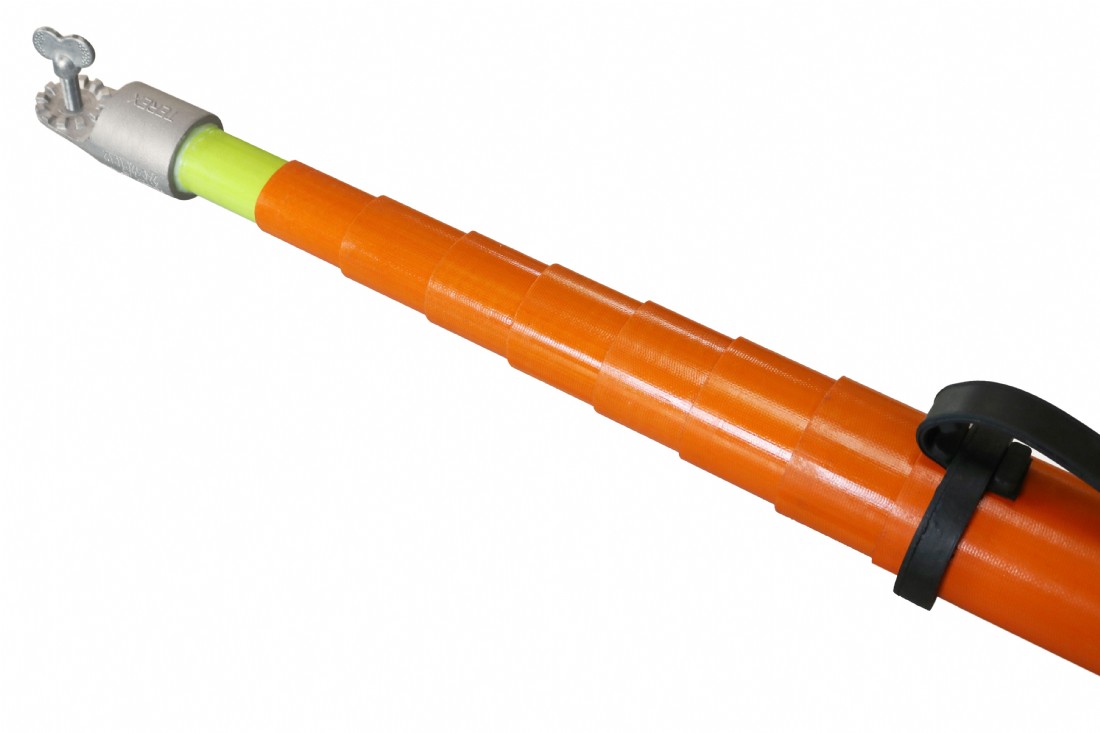

VTT - Height Measuring Hot Sticks

Part # :

Models VTT-1/2 through VTT-1/9 are also provided with metric measuring markings, making VTTs also very important for vertical span measurements.

The numerical markings are printed every 10 cm (0.3 ft) and the intermediary markings are printed every 1 cm. In order to obtain height measurements, the hot stick shall be placed on the ground in the vertical position and as the sections are extended up, the operator can read the right measurement at his eye-sight level.

In order to specify the height measuring hot stick, suffix “M” must be added to the Cat. No. of the respective VTT model.

e.g.: VTT-1/7M (length: 9.180 ± 0.01 m)

The Height Measuring Telescopic Hot Stick is supplied with one resting head (VMR14506-1). When attached to the universal head, the resting head allows operators to touch the exact spot to be measured.

The modular system of the VTT hot stick allows using only the number of sections required for each work. By pressing the locking buttons, the unnecessary bottom sections are released and can be removed, making the VTT hot stick lighter and more comfortable for the performance of the works. Any section can be supplied separately, if replacement is required. Customized section lengths are available upon request.

Images are representative of product. Product may not be exactly as shown.
